ISO9000:2008 certified precision module .The MA Series is ideal for OEM applications
requiring a competitively priced, precision high voltage module.
Low noise:0.001%
High stability:0.001%
Line Regulation:0.001%
Load Regulation:0.001%
Temperature Coefficient:Better than 25ppm/°C.
Compact and light weight
Both external VR or voltage control
APPLICATIONS
High voltage testing
PMT,MCP,radiation counter
Electron Beam/Ion Beam
Mass spectrometry
Electrostatic chuck(ESC)
Photomultiplier Tubes
Scintillators
Electron Guns
Ion Guns
Nuclear Instruments
Electrostatic lenses
Spectroscopy
Microchannel Plates
SUMMARY
The MA serise ie a regulated, versatile,modular HV power supply used in a wide variety of applications including mass spectrometry and Electron Microcopes.From the OEM to the laboratory,they are an excellent choice when you require a highiy stable output.Output can be controlled using either an external control voltage or external variable resistor.With a diverse range of models up to 30KV/60W,you will find something for nearly every requirement.
SPECIFICATIONS
Input Voltage:
+24Vdc±2V. Other input voltages available on special order.
Input Current:
Less than 0.3A at full output.
Output Voltage:
Continuously adjustable over entire output range. Available
in either positive or negative output polarity. See table for
voltage ranges.
Output Voltage Control: Controlled by either:
1) Internal ten-turn potentiometer
2) External potentiometer 5k to 100k (set internal pot. to max.)
3) Remote differential voltage programming (0 to +10V gives
0 to full output).
Accuracy 0.1%.
Remote Control:
Remote programming Common Mode Range: 0VDC to +10VDC
Line Regulation:
0.001% for input change of 10%.
Load Regulation:
0.001% for 0 to full load change(at maximum voltage).
Temperature Coefficient:Better than 25ppm/°C.
Stability:
<0.007%/hr at constant operating conditions after 1 hour warm-up.
Output Voltage and Current Monitors:
Voltage: 0 to +10V represents zero to full output ±1%.
Current: 0 to +10V represents zero to full output ±2%.
Temperature:
Operating: 0°C to +50°C.
Storage: -35°C to +85°C.
Connectors:
Input: 6 OR 8 pin connector (mating connector supplied).
Output: Output voltage 0.3-5kV: 500mm cable

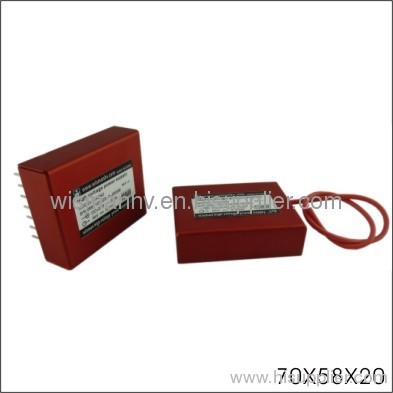

Dimensions:
0.79" Hx2.36" Wx2.76"D
(20.00mmx60.00mmx70.00mm)
