ISO9000:2008 certified precision module .The MU Series is ideal for OEM applications
requiring a competitively priced, precision high voltage module.
Low noise
High stability:0.01%
Line Regulation:0.01%
Load Regulation:0.01%
Temperature Coefficient:Better than 25ppm/°C.
Compact and light weight
Both external VR or voltage control
APPLICATIONS
High voltage testing
PMT,MCP,radiation counter
Electron Beam/Ion Beam
MAss spectrometry
Electrostatic chuck(ESC)
Photomultiplier Tubes
Scintillators
Electron Guns
Ion Guns
Nuclear Instruments
Electrostatic lenses
Spectroscopy
Microchannel Plates
SUMMARY
The MU serise ie a regulated, versatile,modular HV power supply used in a wide variety of applications including MUss spectrometry and Electron Microcopes.From the OEM to the laboratory,they are an excellent choice when you require a highiy stable output.Output can be controlled using either an external control voltage or external variable resistor.With a diverse range of models up to 6KV/30W,you will find something for nearly every requirement.
SPECIFICATIONS
Input Voltage:
12Vdc for 4W, 24Vdc for 10W,20W and 30W.
Nominal Voltage Range:
11Vdc to 30Vdc for 4W, 23Vdc to 30Vdc for 10W,20W and 30W
Input Curr ent: (typical)
Disabled: 30mA
No load: 90mA
Full load:
6 watt units: 0.5A
20 watt units: 1.0A
30 watt units: 1.5A
Efficiency:
80-85%, typical
Voltage Re gulation:
Line: <0.01%
Load: <0.01%
Current Re gulation:
Line: <0.01%
Load: <0.01%
Output Voltage:
Continuously adjustable over entire output range. Available in either positive or negative output polarity. See table for voltage ranges.
Output Voltage Control: Controlled by either:
1) External potentiometer 100k (set internal pot. to MUx.)
2) Remote differential voltage programming (0 to +5V gives
0 to full output).
Accur acy:
2% on all programming and monitoring, except I Sense 10%
Temperature Coefficient: (typical)
Standard: 100ppm/°C
Optional: 25ppm/°C (T Option)
Environmental:
Temperature Range:
Operating: -40°C to 65°C case temperature
Storage: -55°C to 85°C, non operational
Humidity:
10% to 90%, non-condensing.
Cooling:
Convection cooled, typical. 30 watt units operating at full power might require additional cooling to maintain case temperature below 65°C. Methods may include: forced air cooling, use of heat sink or metal case, etc. It is the user's responsibility to
maintain the case temperature below 65°C. Damage to the power supply due to inadequate cooling is considered misuse and repairs will not be covered under warranty.

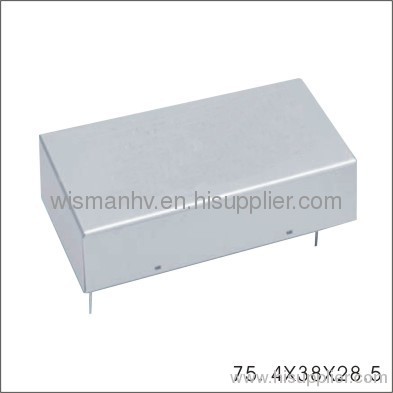

Dime nsions:
2.96"L X 1.49" W X 0.81"H
(75.2mm X 37.9mm X 28.5mm)
Weight:
4 oz. (113g), typical
